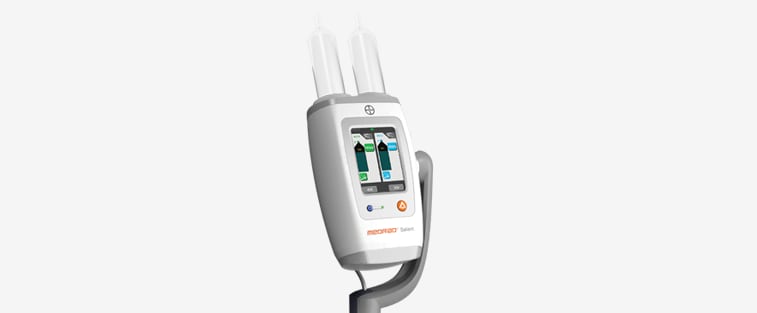

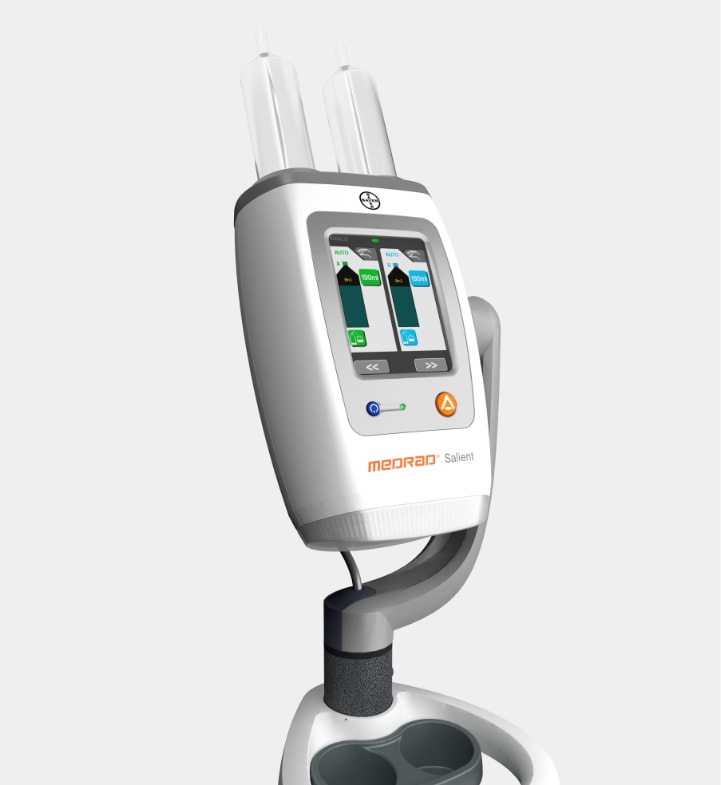

How does MEDRAD^® Salient work?

An icon-driven, user-friendly interface allows the creation of customized protocols –up to 6 phases. The cordless configuration of MEDRAD^® Salient means greater mobility without the need for electrical or data cables. Compared to a single head injector system, use of a saline flush with a dual head injector provides improved peak contrast enhancement and controlled timing of contrast bolus¹.

* MEDRAD^® Salient is not available in Germany and the U.S.

1 - Saline Chasing Technique with Dual Syringe Injector Systems for MD Row CT Angiography: Rationale, Indications and Protocols, Mark Luler, Terry Heagy, Lejla Aganovic, Robin Brothers, U. Joseph Schoepf (Vol 35, No. 1, Jan/Feb 2006 // Current Problems in Diagnostic Radiology)

The capabilities of MEDRAD^® Salient

Mobility

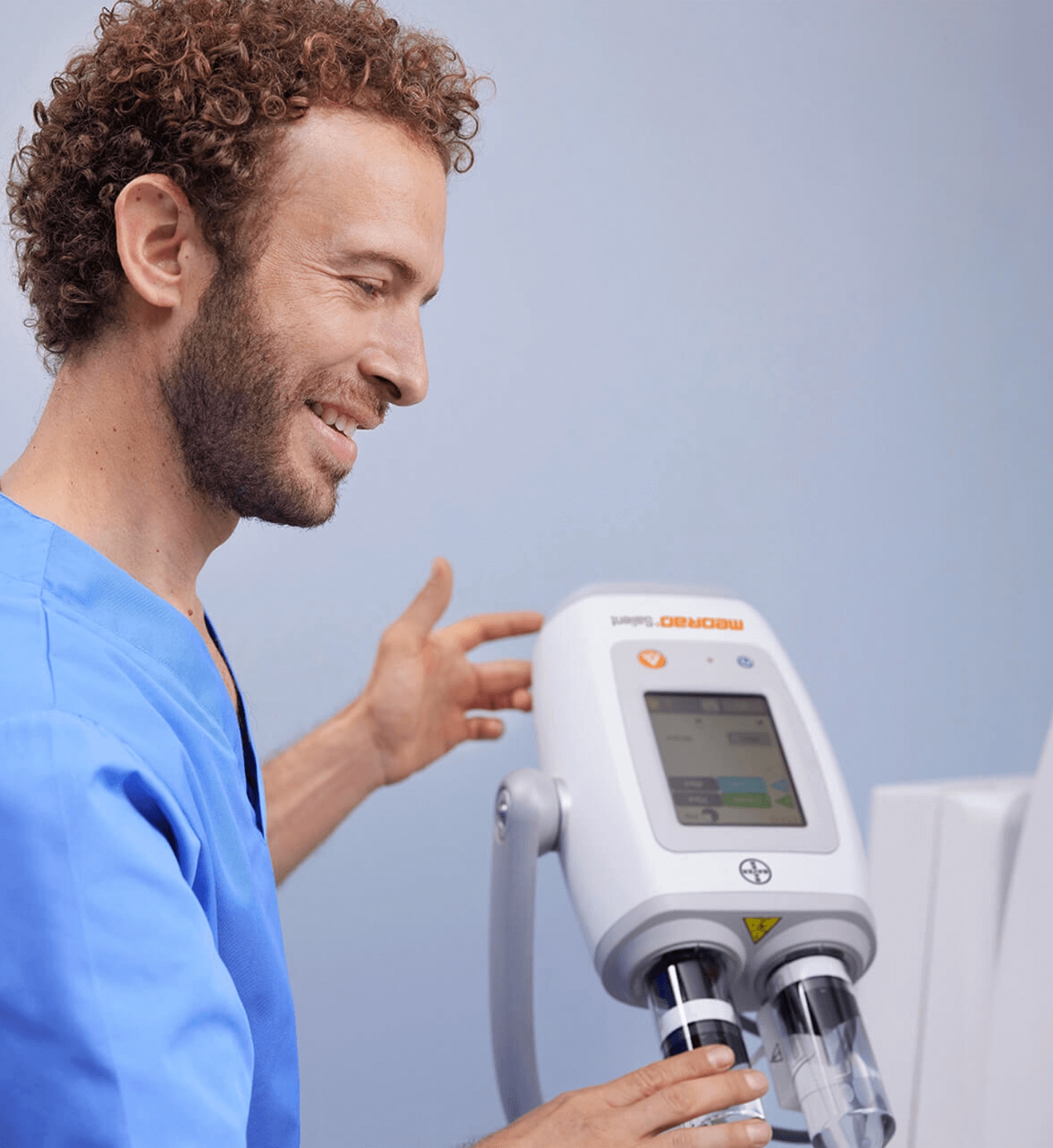

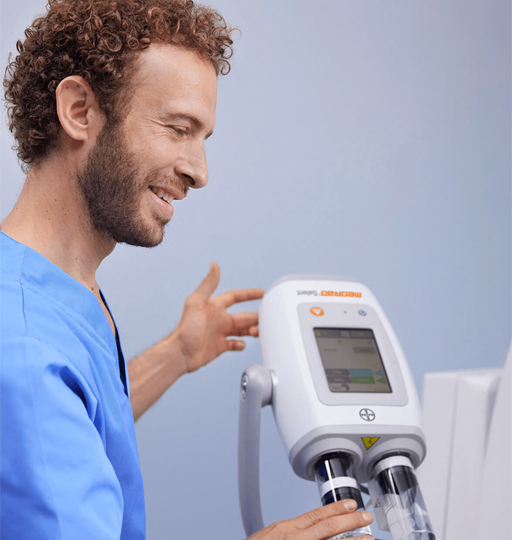

• Cordless configuration: eliminates cables on the floor
• Mobile and compact design allows flexibility of injector positioning and ease of storage
• Light weight and easy to move

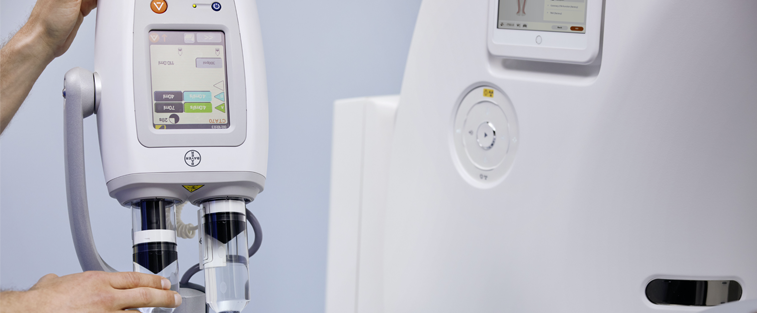

Reliability

• Simple head design minimizes contrast fouling
• Provides dependable, reproducible flow rates and pressures that can consistently deliver injection protocols


Simplicity

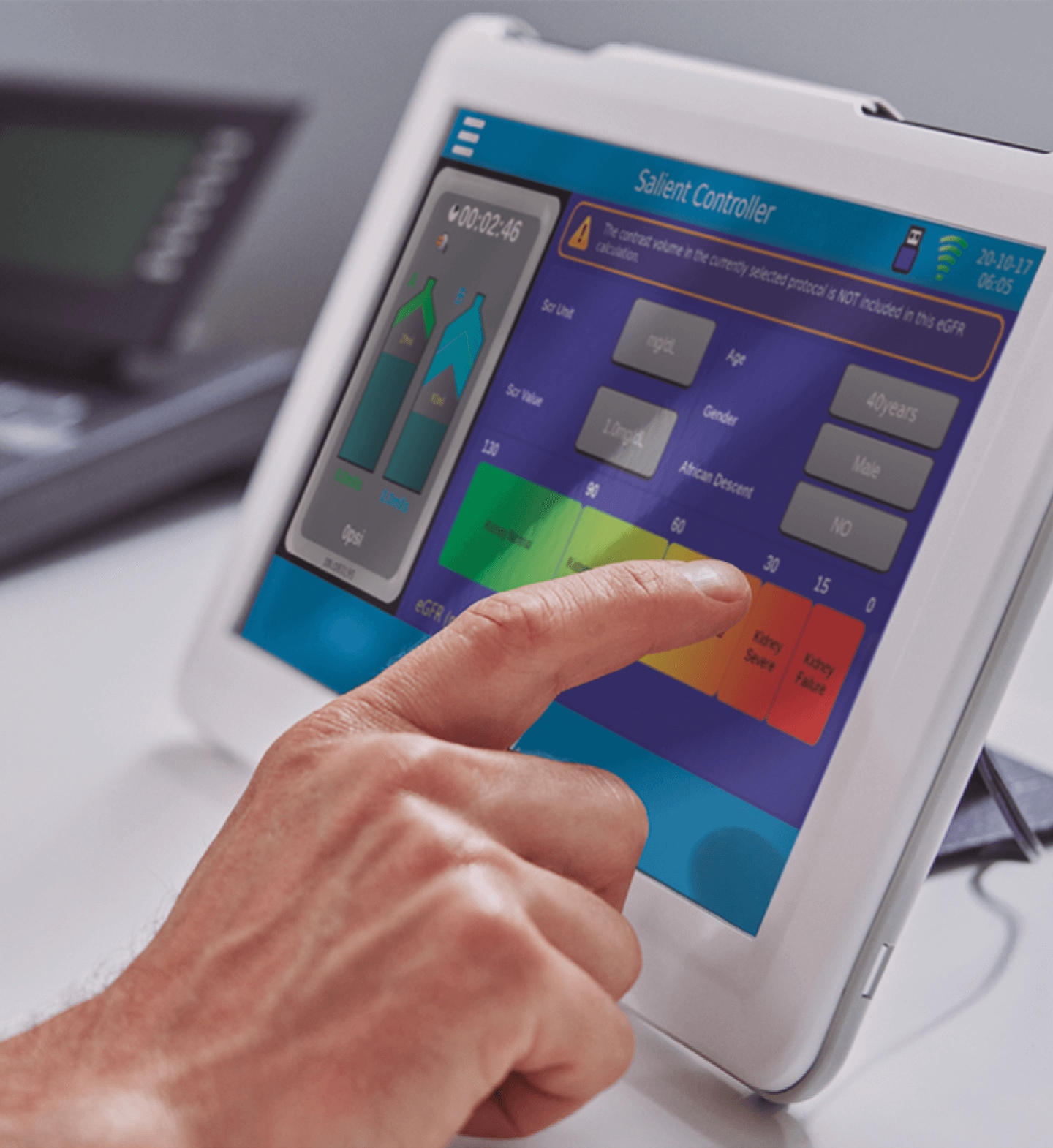

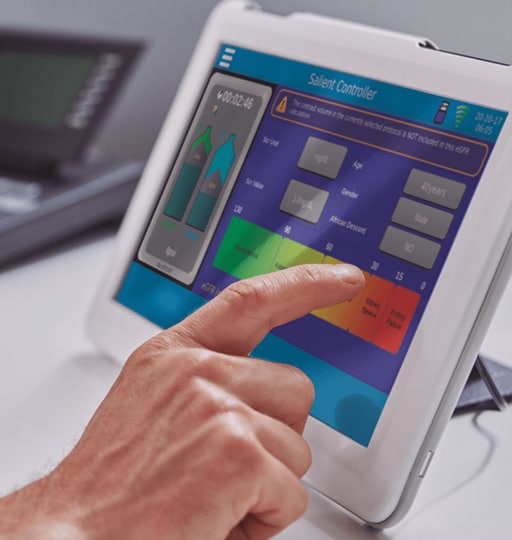

• User friendly, icon driven interface
• Flexible workflow and software architecture

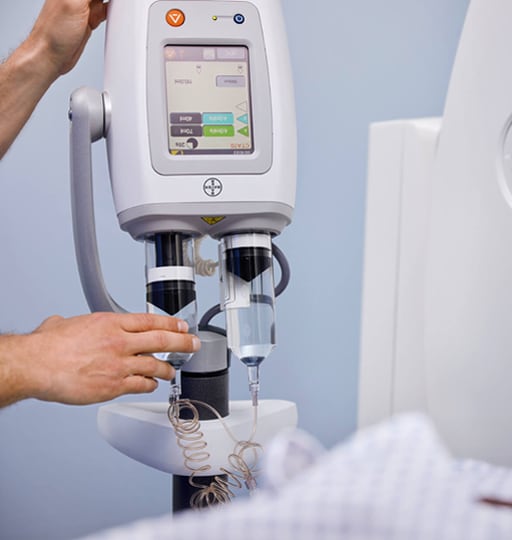

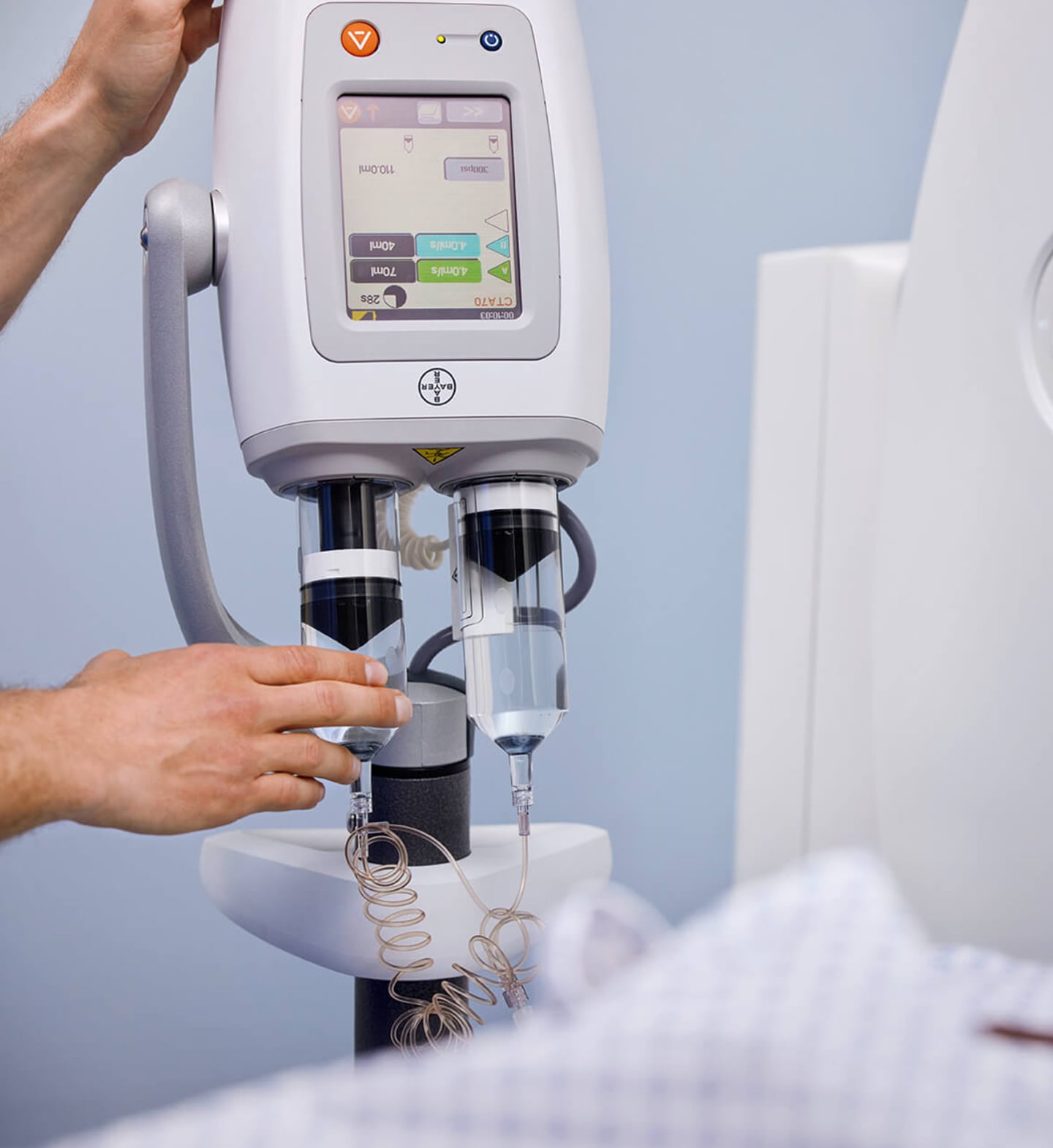

• Single action syringe loading
• Optional WiFi enabled remote control unit (RCU) added convenience and functionality
• Ability to review the previous 40 injections at the injector head. The RCU allows review of up to 100 previous injection profiles (including volume, pressure and flow metrics). The RCU also allows data export of this information

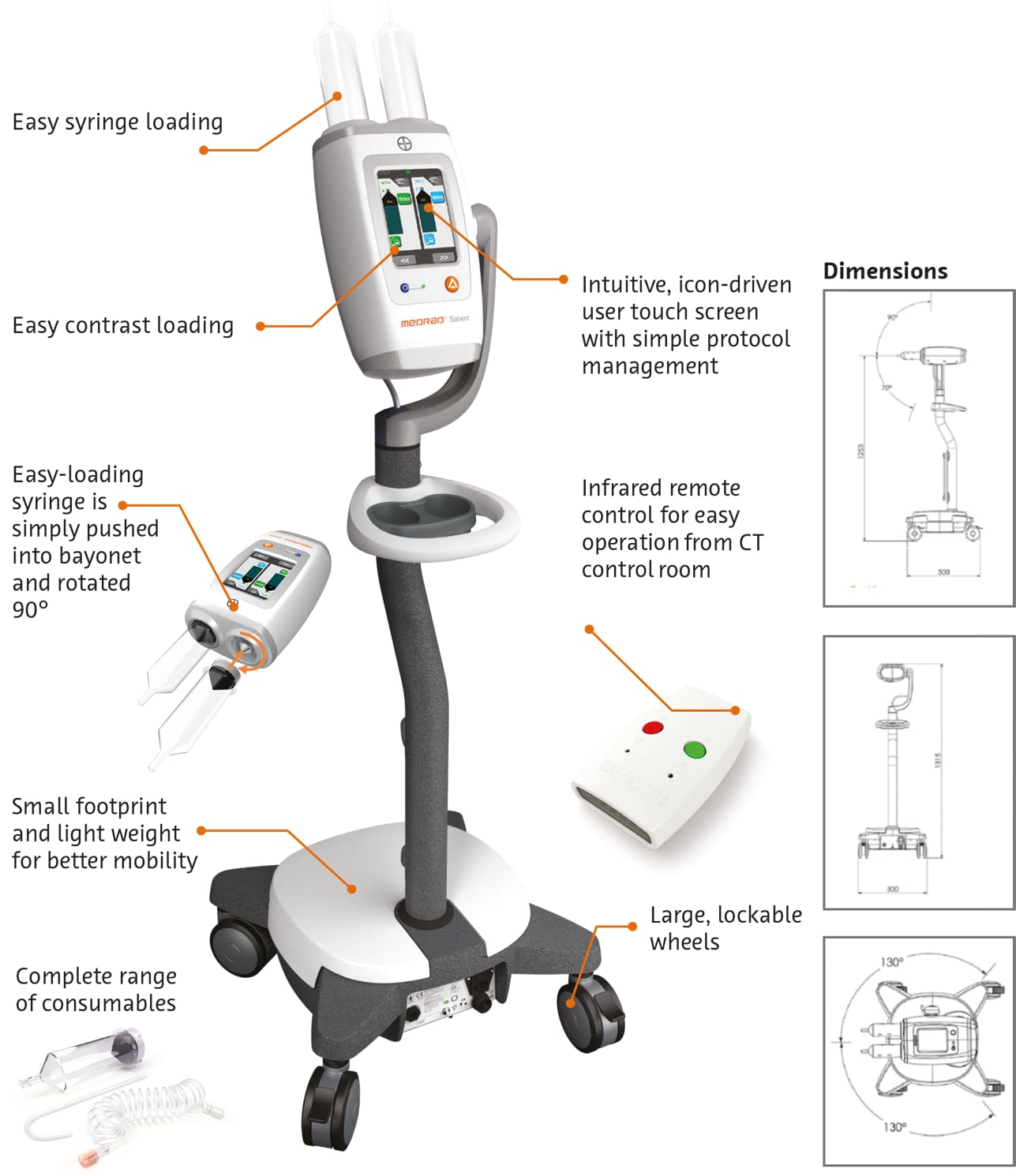

Specifications

• Flow rates range from 0.1 mL/sec to 10.0 mL/sec incrementally by 0.1 mL/sec. Volumes of up to 190 mL per syringe, incrementally by 1 mL
• The maximum pressure limit setting of 300 psi
• MEDRAD^® Salient S is designed for contrast media only, MEDRAD^® Salient D enables the flexibility of injecting contrast and saline

Accessories

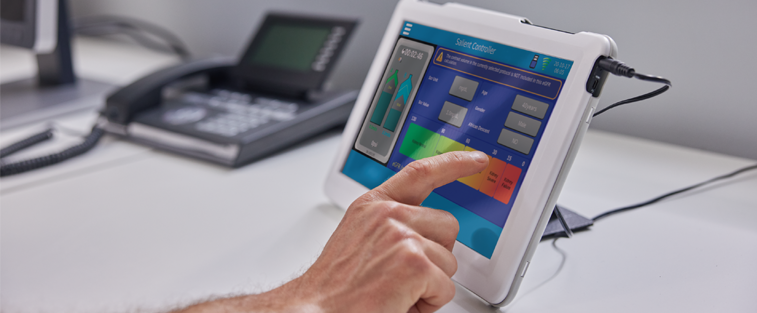

• Wireless control room monitor
• Available scanner interface: ISI 700
• Protocol Assistant Tool (PAT)
• Simultaneous Injection


Availability

• MEDRAD^® Salient not available within Germany, Canada and the U.S.
• MEDRAD^® Salient D is not available through OEM’s price book or corporate catalogue
• Check with your Bayer representative for local availability and options
